Preliminary Result
03/08/04 04:37:19.99 (Mw 7.4) Scotia Island
Earthquake
Chen Ji, Caltech
DATA Process and Inversion
We used the GSN broadband data downloaded from the IRIS DMC. We analyzed 13 teleseismic P waveforms and 12 SH waveforms selected based upon data quality and azimuthal distribution. Waveforms are first converted to displacement by removing the instrument response and then used to constrain the slip history based on a finite fault inverse algorithm (Ji et al, 2002). We use the hypocenter of the USGS (Lon.=-43.494 deg.; Lat.=-60.553 deg.).
ResultAfter comparing the waveform fits based on two planes, we find that the nodal plane (strike=103 deg., dip=43 deg.) fits the data better. The seismic moment release based upon this plane is 2.33x10**27 dyne.cm using a 1D crustal model interpolated from CRUST2.0 (Bassin et al., 2000).
Cross-section of slip distribution

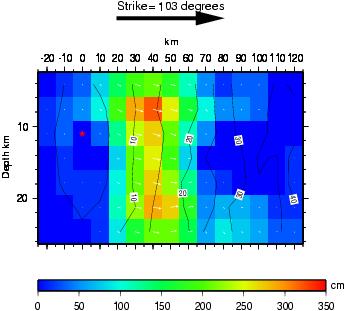

Figure: The big black arrow shows the fault's strike. The colors show the slip
amplitude and white arrows indicate the direction of motion of the hanging
wall relative to the footwall. Contours show the rupture initiation time and
the red star indicates the hypocenter location.
Comparison of data and synthetic seismograms

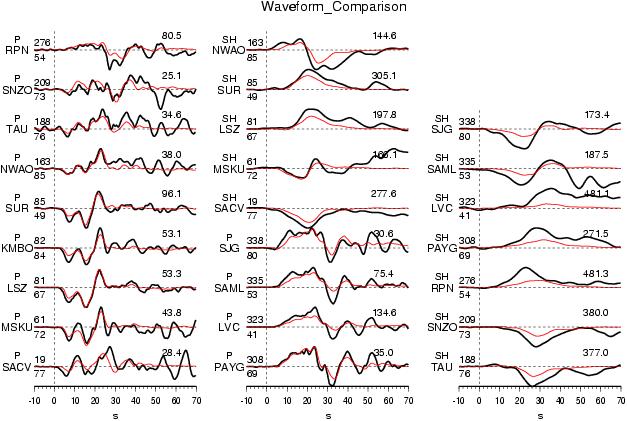

Figure: The Data are shown in black and the synthetic seismograms are plotted in red. Both data and synthetic seismograms are aligned on the P or SH arrivals. The number at the end of each trace is the peak amplitude of the observation in micro-meter. The number above the beginning of each trace is the source azimuth and below it is the epicentral distance.

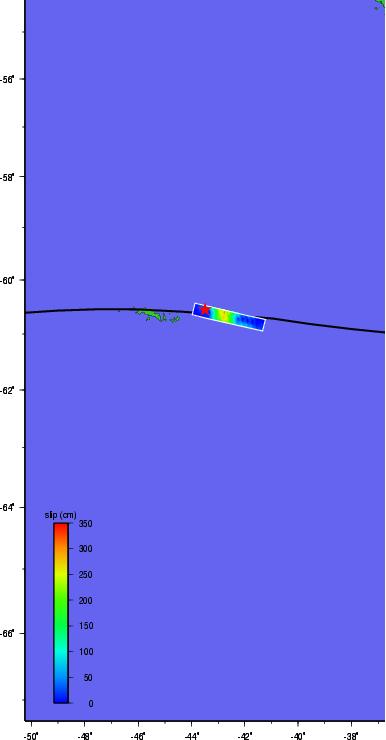

Figure: Surface projection of the slip distribution supperimposed on topography and bathymetry map ETOPO2. The ocean is plotted in blue and land is plotted in green. The black line indicates the plate boundary.
CJ's Comments:
Not Available YetDownload (Slip Distribution, Not available yet)
| SUBFAULT FORMAT | CMT SOLUTION FORMAT |
References
Ji, C., D.J. Wald, and D.V. Helmberger, Source description of the 1999 Hector Mine, California earthquake; Part I: Wavelet domain inversion theory and resolution analysis,
Bassin, C., Laske, G. and Masters, G., The Current Limits of Resolution for Surface Wave Tomography in North America, EOS Trans AGU, 81, F897, 2000.
