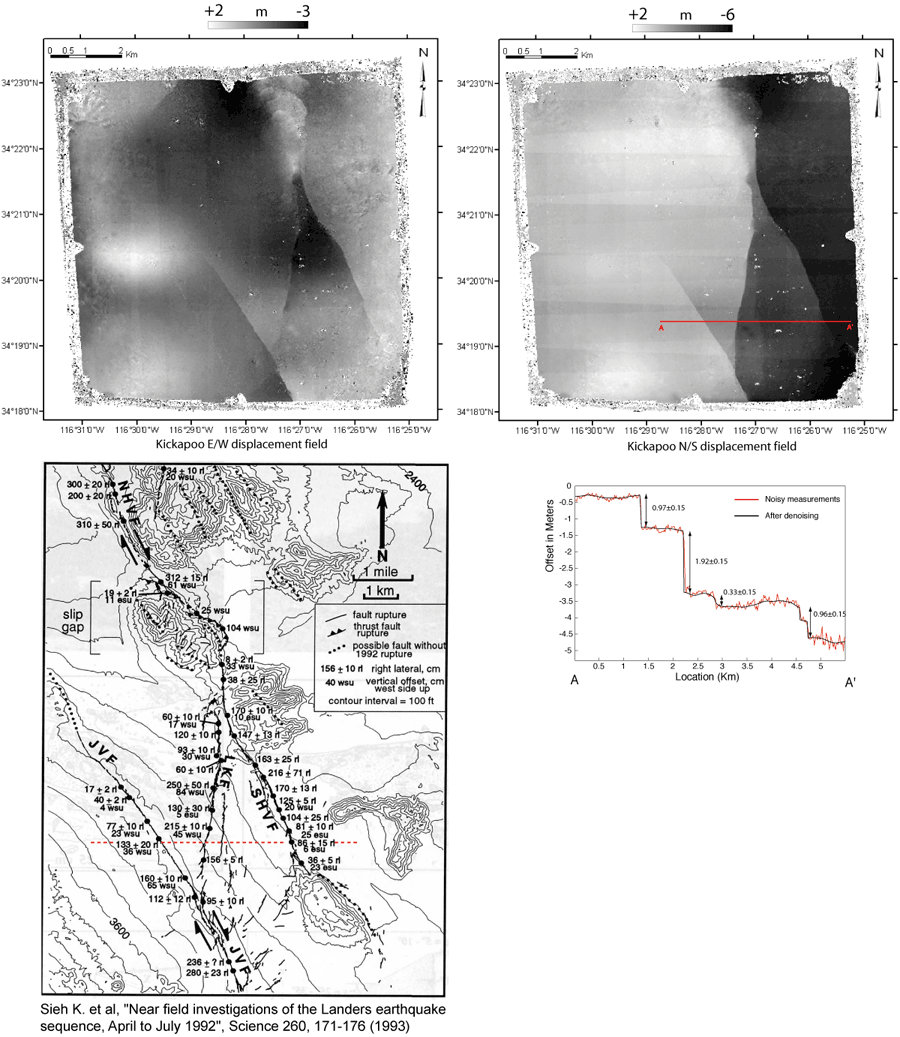

The 1992 Landers, California earthquake seen from Aerial images
Note:
-Scan artefacts visible mostly on the N/S component
-Film distortion visible on the E/W and N/S component
-Scan artefacts visible mostly on the N/S component
-Film distortion visible on the E/W and N/S component
| Pre-earthquake image (USGS-NAPP): Acquisition date : 7/25/89 Ground resolution : 1m |
Post-earthquake image (USGS-NAPP): Acquisition date : 06/01/02 Ground resolution : 1m |
Correlation image : - 64m x 64m correlation windows - 16m step between windows ----> 16m displacement resolution |
